Garden-Facing Prefab Cabin with a Separate Lounge

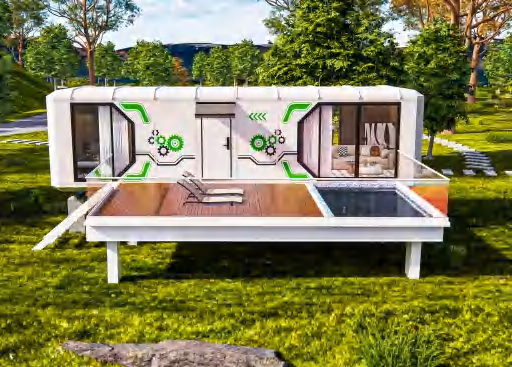

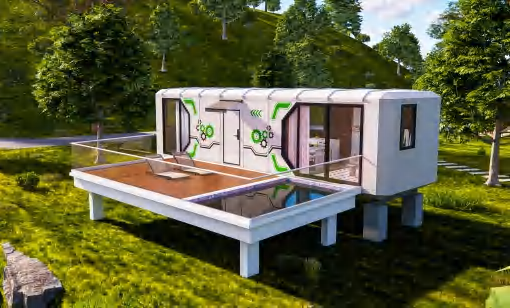

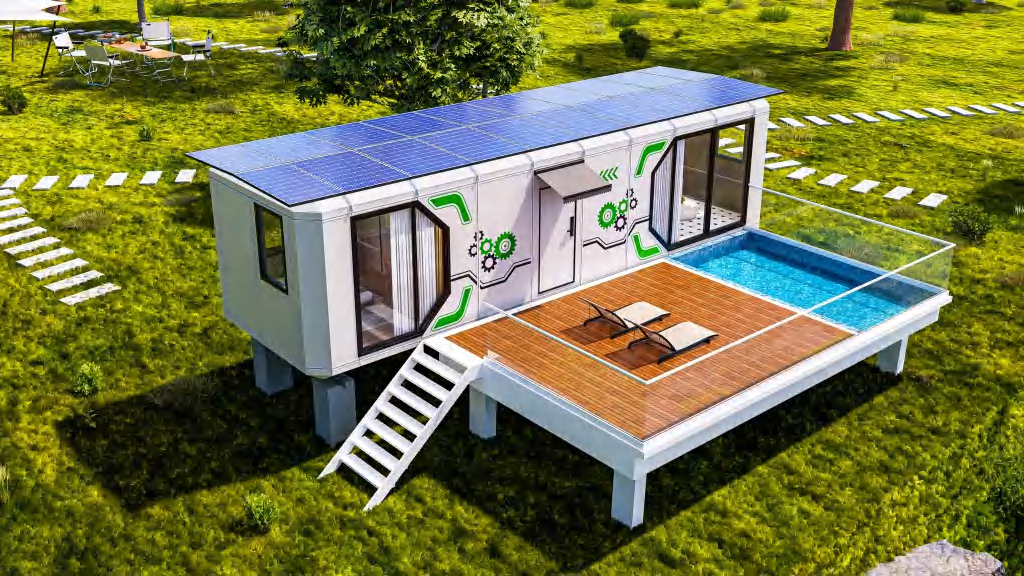

The MG3-40B exterior imagery can help you think through the relationship between the building and an outdoor platform. Decide which rooms face the garden, where the entrance path goes and how guests reach seating outside. An appearance of solar equipment in a concept image is a prompt for a specification discussion, not an automatic off-grid package. The 11.38 × 3.48 m building footprint and the agreed equipment schedule should remain separate parts of the planning brief.

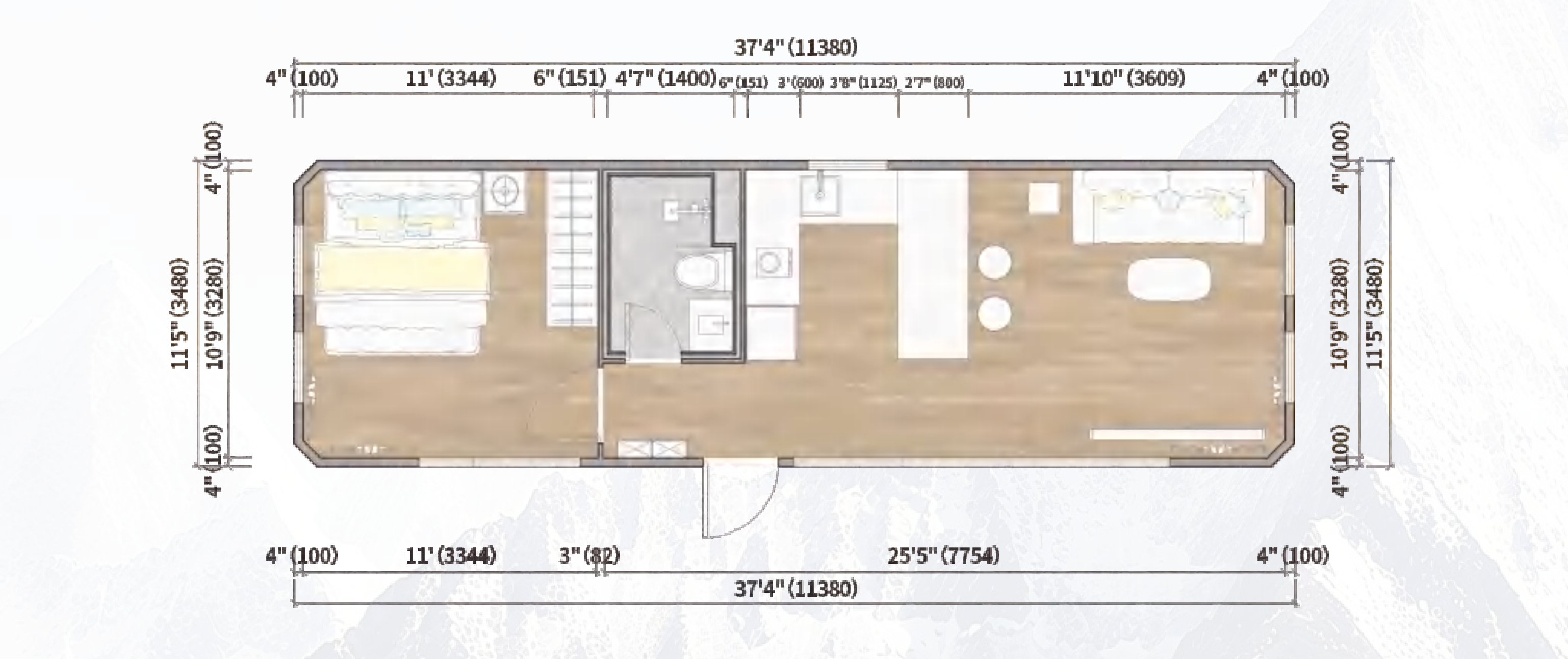

The MG3-40B design area is 39.11 m². Use the room drawing to relate that area to furniture and clear walking routes.

The external building dimensions are 11.38 m long, 3.48 m wide and 3.2 m high. These describe the building envelope; allow additional space for the approach, any requested platform and access to the service connections.

Choose MG3-40B for the design and indoor-outdoor arrangement you want to develop. Compare MG3-40A at the same area, or MG3-31B if a shorter bedroom-and-lounge cabin is sufficient. Ask us to specify any renewable-energy equipment as a measured part of the proposal.

• Modular Guest Suite for Longer Resort Stays: MG3-40A · 39.11 m² · 1 bedroom · living room · 1 bathroom.
• Modern Modular Cabin for Deck-Led Retreats: MG3-31B · 31.11 m² · 1 bedroom · living room · 1 bathroom.

Open the drawings side by side and compare bedroom privacy, shared living space and the building footprint. The model code remains a reference for the exact configuration you ask us to quote.

The modular system allows the building to be considered as a coordinated set of components rather than a collection of unrelated site materials. We review the transport arrangement, unloading position, assembly sequence and service interfaces with the project brief. A container-based component shipment and a completed-unit delivery create different requirements for the site, so the selected method should be agreed before scheduling local equipment or labour. Read our guide to the modular building envelope for the questions to resolve during selection.

For this garden-facing prefab cabin, start with the destination, number of units, intended use and preferred room arrangement. The 3.48 m external width and 11.38 m length are useful inputs to the delivery review, alongside the final shipment configuration. We coordinate the agreed supply boundary with transport, unloading, supports and site utilities. Read the shipping and site-access guide before fixing an unloading position.

The quotation follows the chosen MG3-40B configuration: room fit-out, glazing and insulation requirements, bathroom or kitchen equipment, finishes, ordered quantity and delivery scope. A comparable quote uses the same inclusions and destination assumptions. Send a drawing or site sketch with the project quotation checklist so we can identify the options that matter to your use.
