One-Bedroom Prefab Lodge with Extra Room

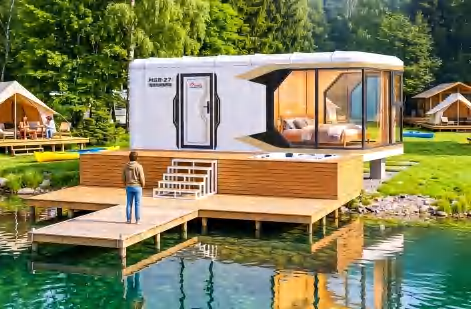

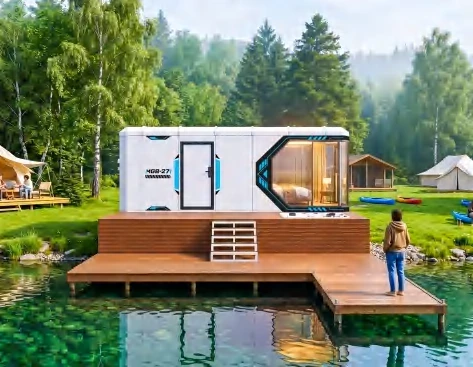

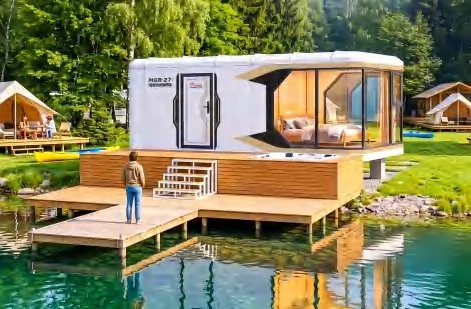

The useful comparison with MG8-18 is how the added length supports the bedroom brief. Map furniture and circulation against the actual drawing, then decide where storage, seating or any requested fitted items should go. The 7.72 × 3.48 m external building envelope also gives a different relationship to a terrace or path. An attractive exterior rendering should be read alongside the room description rather than treated as evidence of an additional enclosed living room.

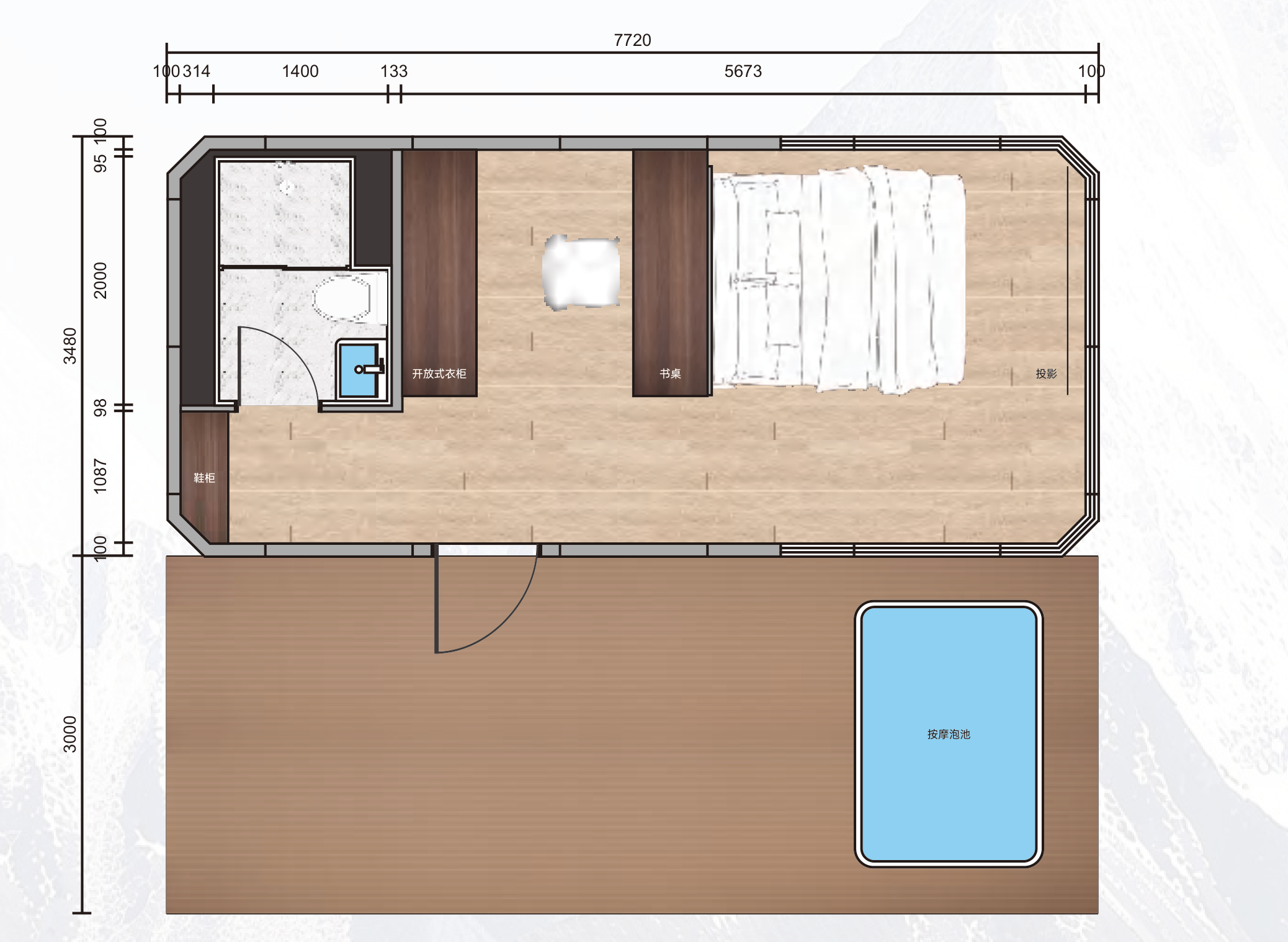

The MG8-27 design area is 26.87 m². Use the room drawing to relate that area to furniture and clear walking routes.

The external building dimensions are 7.72 m long, 3.48 m wide and 3.2 m high. These describe the building envelope; allow additional space for the approach, any requested platform and access to the service connections.

Choose MG8-27 when a larger bedroom-and-bathroom format is preferable to adding another room. MG8-35 is the next comparison when an explicit living room matters; the A9 offers a bedroom-and-lounge arrangement at a similar overall area but a different footprint.

• Compact Modular Studio for Short-Stay Lodging: MG8-18 · 18.38 m² · 1 bedroom · 1 bathroom.
• Modular Holiday Suite for Beachside Projects: MG8-35 · 35.36 m² · 1 bedroom · living room · 1 bathroom.

Open the drawings side by side and compare bedroom privacy, shared living space and the building footprint. The model code remains a reference for the exact configuration you ask us to quote.

The modular system allows the building to be considered as a coordinated set of components rather than a collection of unrelated site materials. We review the transport arrangement, unloading position, assembly sequence and service interfaces with the project brief. A container-based component shipment and a completed-unit delivery create different requirements for the site, so the selected method should be agreed before scheduling local equipment or labour. Read our guide to the modular building envelope for the questions to resolve during selection.

For this one-bedroom prefab lodge, start with the destination, number of units, intended use and preferred room arrangement. The 3.48 m external width and 7.72 m length are useful inputs to the delivery review, alongside the final shipment configuration. We coordinate the agreed supply boundary with transport, unloading, supports and site utilities. Read the shipping and site-access guide before fixing an unloading position.

The quotation follows the chosen MG8-27 configuration: room fit-out, glazing and insulation requirements, bathroom or kitchen equipment, finishes, ordered quantity and delivery scope. A comparable quote uses the same inclusions and destination assumptions. Send a drawing or site sketch with the project quotation checklist so we can identify the options that matter to your use.
