Two-Bedroom Modular Lodge for Family Holidays

The second bedroom is the main reason to compare MH7-48 with the one-bedroom MH7 models. Review the sleeping-room furniture, the route to the shared bathroom and where the family can gather in the living room. At 13.84 m long, this is also a different site-planning proposition from a compact guest pod. Check the complete installation approach, the orientation of the rooms and how guests reach any outdoor space without creating an awkward route around the building.

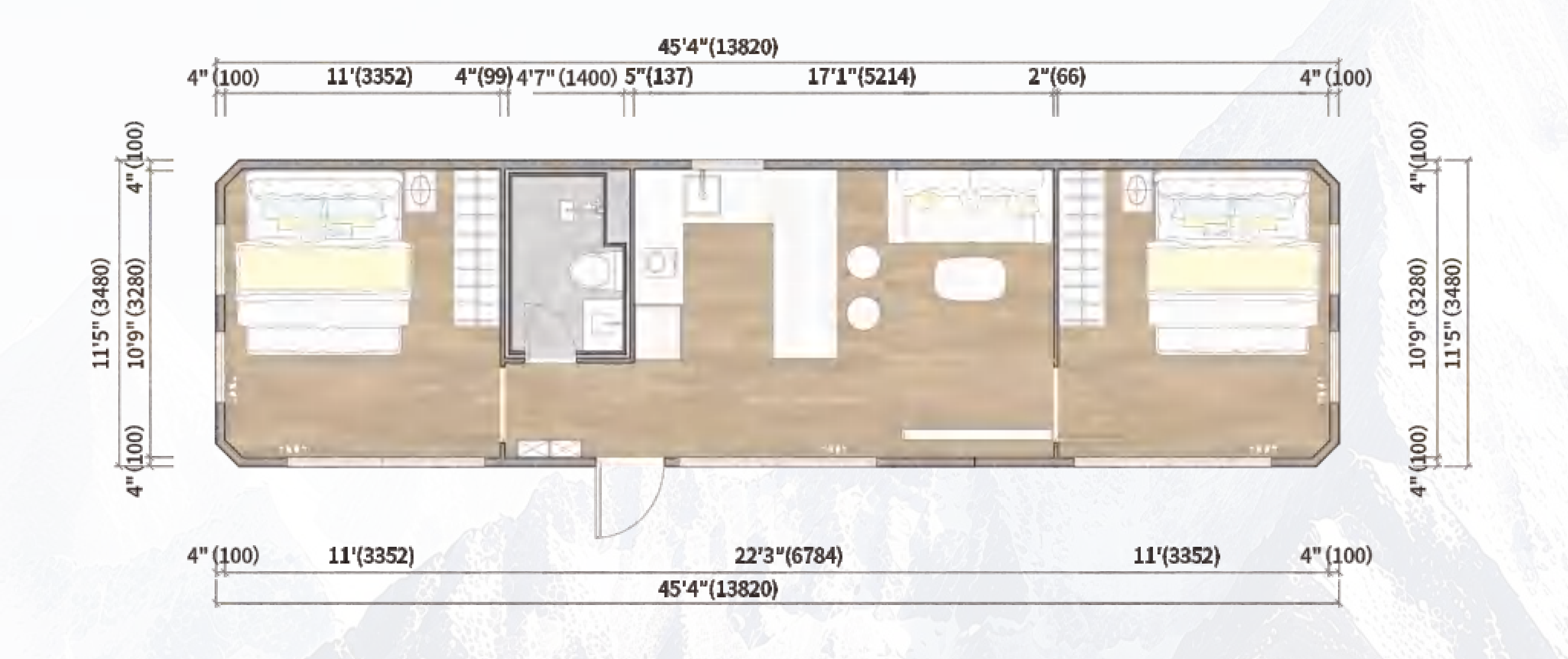

The MH7-48 design area is 48.09 m². Use the room drawing to relate that area to furniture and clear walking routes.

The external building dimensions are 13.84 m long, 3.48 m wide and 3.2 m high. These describe the building envelope; allow additional space for the approach, any requested platform and access to the service connections.

Choose MH7-48 for a two-bedroom holiday brief with one shared bathroom. MG3-48 offers the same area and room description in a different exterior design; the connected modular home moves to three bedrooms and two bathrooms when the group needs more separation.

• Two-Bedroom Modular Home for Private Retreats: MG3-48 · 48.09 m² · 2 bedrooms · living room · 1 bathroom.
• Three-Bedroom Modular Home with an Outdoor Terrace: MH7-40+MH7-23 · 83.17 m² · 3 bedrooms · 2 bathrooms · terrace.

Open the drawings side by side and compare bedroom privacy, shared living space and the building footprint. The model code remains a reference for the exact configuration you ask us to quote.

The modular system allows the building to be considered as a coordinated set of components rather than a collection of unrelated site materials. We review the transport arrangement, unloading position, assembly sequence and service interfaces with the project brief. A container-based component shipment and a completed-unit delivery create different requirements for the site, so the selected method should be agreed before scheduling local equipment or labour. Read our guide to the modular building envelope for the questions to resolve during selection.

For this two-bedroom modular lodge, start with the destination, number of units, intended use and preferred room arrangement. The 3.48 m external width and 13.84 m length are useful inputs to the delivery review, alongside the final shipment configuration. We coordinate the agreed supply boundary with transport, unloading, supports and site utilities. Read the shipping and site-access guide before fixing an unloading position.

The quotation follows the chosen MH7-48 configuration: room fit-out, glazing and insulation requirements, bathroom or kitchen equipment, finishes, ordered quantity and delivery scope. A comparable quote uses the same inclusions and destination assumptions. Send a drawing or site sketch with the project quotation checklist so we can identify the options that matter to your use.
