Roomy Prefab Suite for Boutique Hospitality

The MH7-40 extends the single-bedroom-and-lounge arrangement to an 11.38 m external building length. Use that space deliberately: review seating, luggage storage and the transition to the bedroom instead of assuming every extra square metre needs another function. For a hospitality project, consider how two guests use the room at different times of day and how staff can reach serviceable equipment. The longer footprint also deserves a clear arrival and outdoor circulation plan.

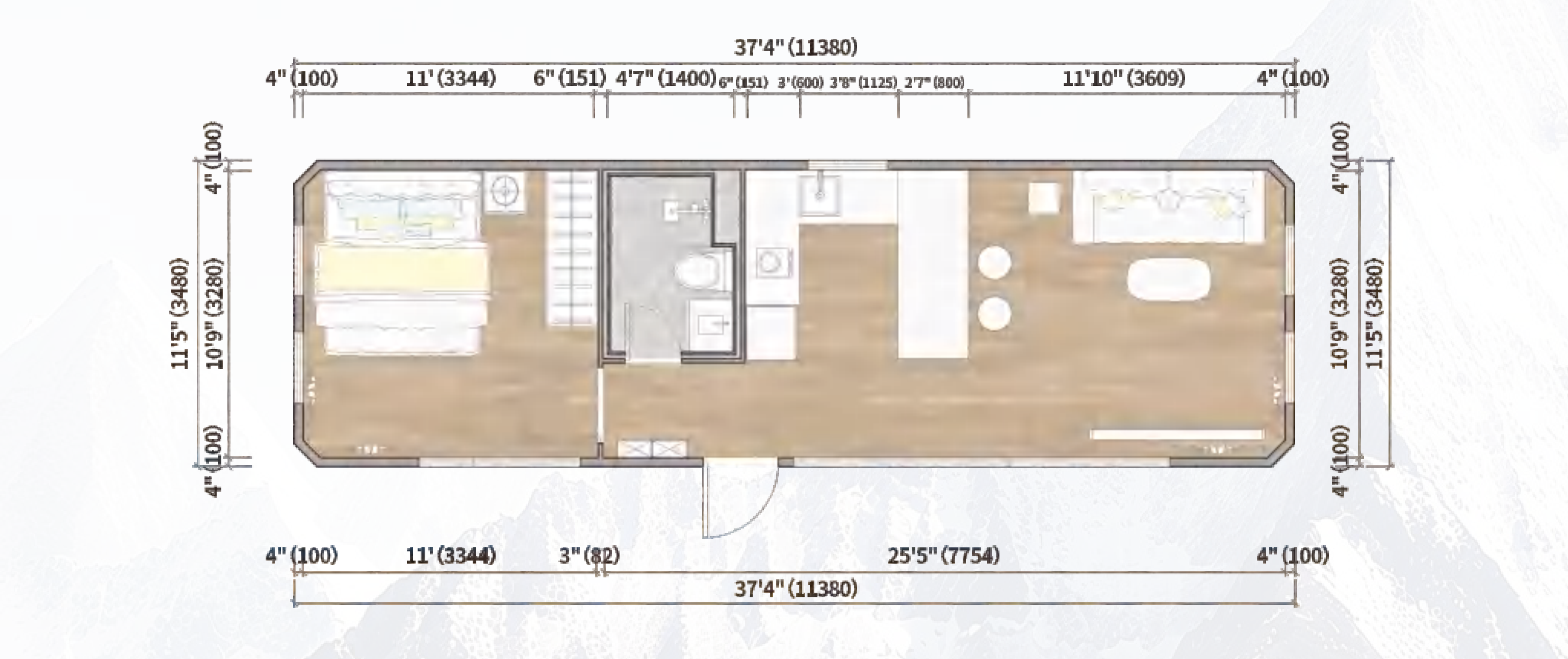

The MH7-40 design area is 39.11 m². Use the room drawing to relate that area to furniture and clear walking routes.

The external building dimensions are 11.38 m long, 3.48 m wide and 3.2 m high. These describe the building envelope; allow additional space for the approach, any requested platform and access to the service connections.

Choose MH7-40 when a spacious one-bedroom suite is the goal. MH7-48 changes the brief to two bedrooms, while MH7-31 offers the same broad room mix in a shorter building. MG3-40A and MG3-40B can be compared for alternative exterior treatments at the same specified area.

• Modular Holiday Cabin with Bedroom and Lounge: MH7-31 · 31.11 m² · 1 bedroom · living room · 1 bathroom.
• Two-Bedroom Modular Lodge for Family Holidays: MH7-48 · 48.09 m² · 2 bedrooms · living room · 1 bathroom.

Open the drawings side by side and compare bedroom privacy, shared living space and the building footprint. The model code remains a reference for the exact configuration you ask us to quote.

The modular system allows the building to be considered as a coordinated set of components rather than a collection of unrelated site materials. We review the transport arrangement, unloading position, assembly sequence and service interfaces with the project brief. A container-based component shipment and a completed-unit delivery create different requirements for the site, so the selected method should be agreed before scheduling local equipment or labour. Read our guide to the modular building envelope for the questions to resolve during selection.

For this prefab resort suite, start with the destination, number of units, intended use and preferred room arrangement. The 3.48 m external width and 11.38 m length are useful inputs to the delivery review, alongside the final shipment configuration. We coordinate the agreed supply boundary with transport, unloading, supports and site utilities. Read the shipping and site-access guide before fixing an unloading position.

The quotation follows the chosen MH7-40 configuration: room fit-out, glazing and insulation requirements, bathroom or kitchen equipment, finishes, ordered quantity and delivery scope. A comparable quote uses the same inclusions and destination assumptions. Send a drawing or site sketch with the project quotation checklist so we can identify the options that matter to your use.
